double layer roofing panel glazed tile press machine

Categories: Double layer roll forming machine

3. Technical specifications and details of double layer roll former machine

(1) Manual decoiler

Un-power; manual decoiler; max. Capacity: 5000kg

Suit for coil inner-diameter: 508mm, suit for coil max outer diameter: 1000mm

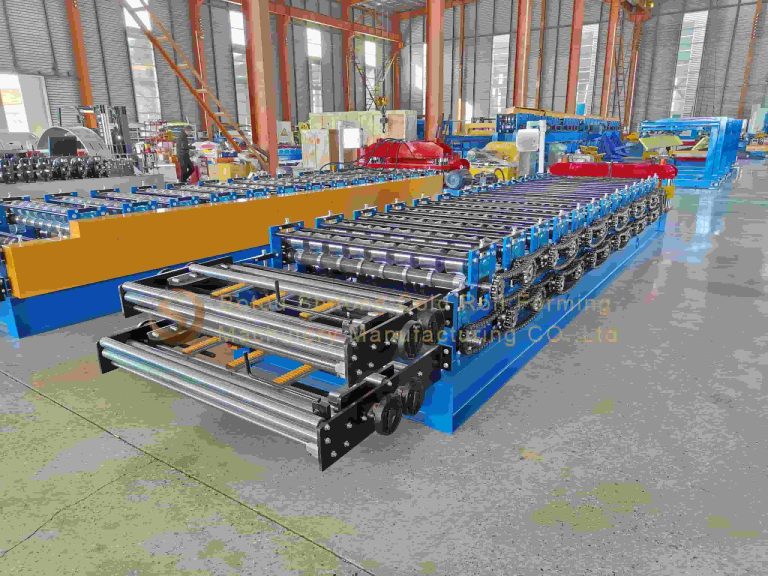

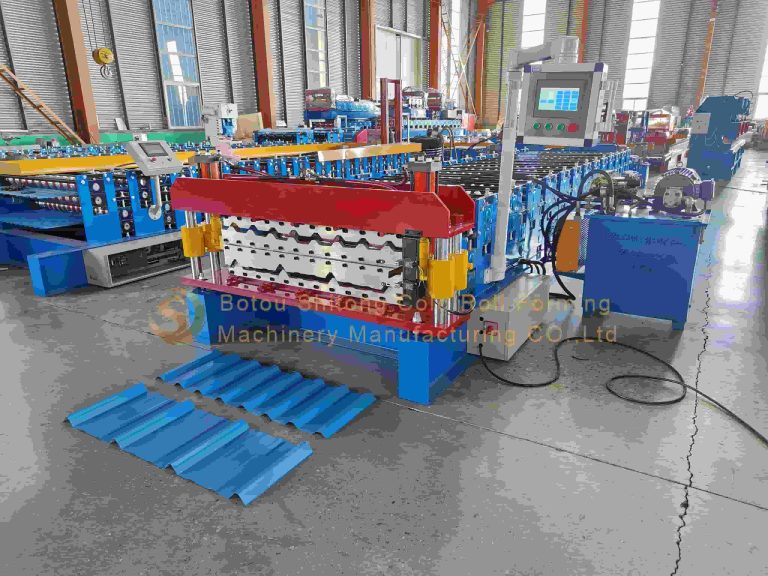

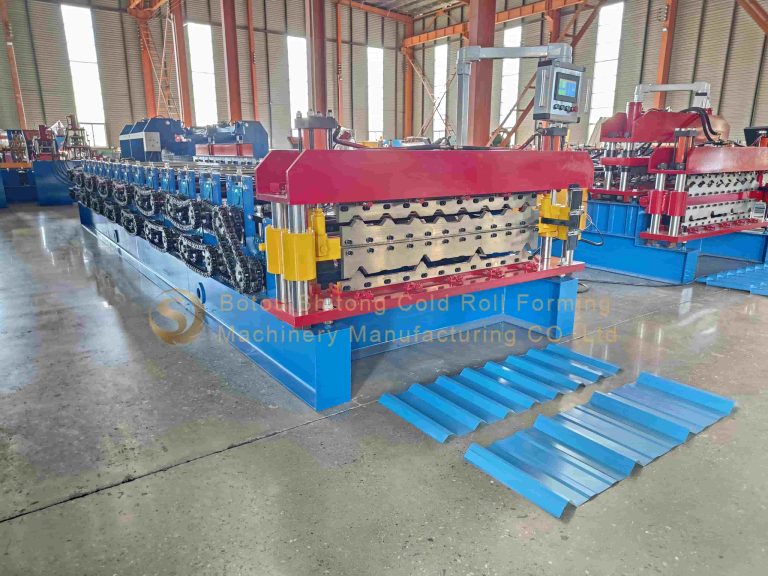

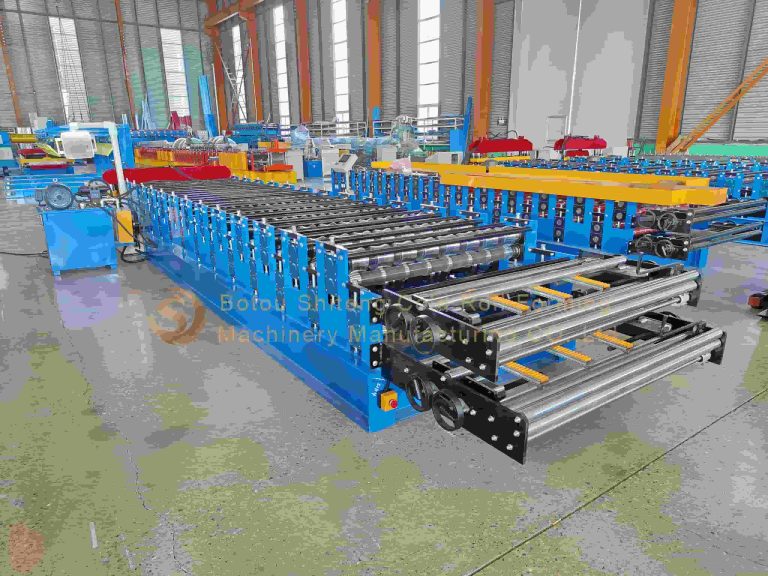

(2) Main forming machine

a.Number of forming steps: 16 steps depend on the profile

b.Material of shaft: 45# steel hardening and tempering treatment. Outer diameter 85mm ,total solid

Tolled shafts

c. rollers: Material is high grade No.45 forged steel, with digital-controlled procession. The rollers are plated with hard chrome with thickness of 0.05mm on the surface after being machined by the exact machine tool. So that ensure long life of forming rollers.

d. Main motor power: 4 Kw with cyclical planetary gear speed reducer

Manual power expands the coil inner surface.

Chat Now

Product Details

1.Processing flow of double layer roll former machine:

Manual decoiler→Feeding material into machine→Roll forming machine→Measure length→Hydraulic cutting→Finished Products

2.The equipment includes:

Main forming machine,	1 set
Hydraulic cutter	1 set
Electrical control system	1set
Hydraulic system	1set
Normal out table	3 PC 1m*1m
Manual decoiler	1 set Max loading 5Ton

Packing and transportation

Product Packaging:

The Roofing Sheet Roll Forming Machine Will Be Carefully Packaged To Ensure Safe Delivery. It Will Be Securely Wrapped And Placed In A Sturdy Wooden Crate To Prevent Any Damage During Transit. Additionally, All Delicate Components Will Be Protected With Padding And Bubble Wrap.

Shipping Information:

Once The Roofing Sheet Roll Forming Machine Is Packaged And Ready For Shipment, It Will Be Transported By A Reliable Shipping Carrier. You Will Be Provided With A Tracking Number So You Can Monitor The Delivery Progress. The Estimated Delivery Time Will Depend On Your Location And Chosen Shipping Method.
