Floor Deck Roll Forming Machine Floor Deck Making Machine

Categories: Floor deck roll forming machine

The floor deck cold roll forming machine uses multiple sets of rollers (dies) to perform progressive and continuous bending on metal materials. After the materials (such as steel plates, stainless steel, aluminum, etc.) are fed into the machine through the feeding system, they pass through rollers of different angles in sequence. Each roller group applies pressure to the material, gradually changing its curvature, and finally forming the required arc or complex curve. It is mainly used in the construction industry, energy equipment, general manufacturing and other industries.

Chat Now

Product Details

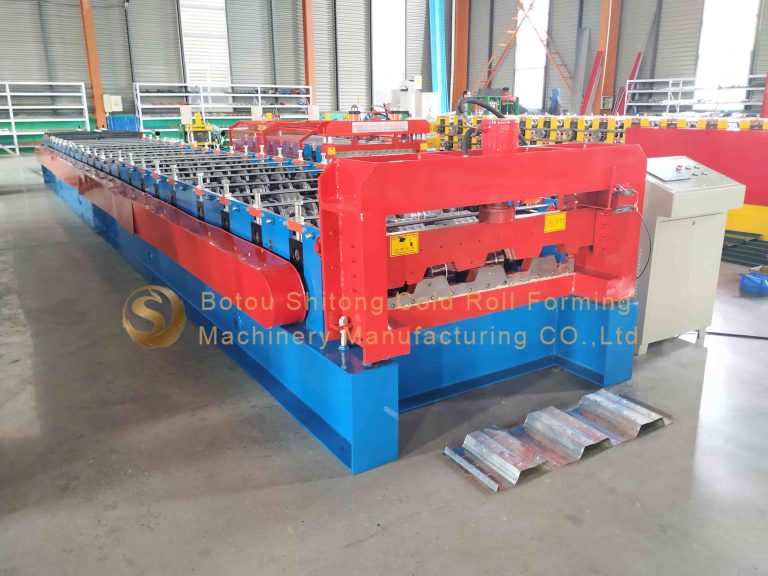

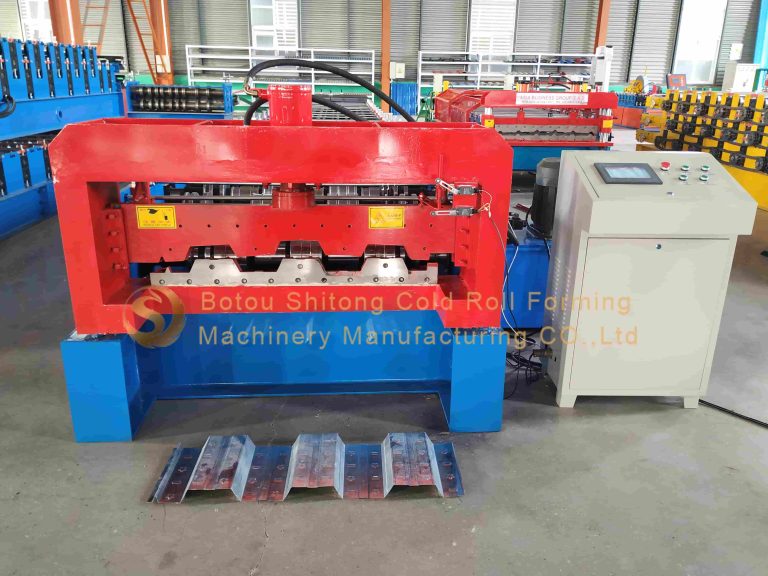

Floor Deck Roll Forming Machine Floor Deck Making Machine

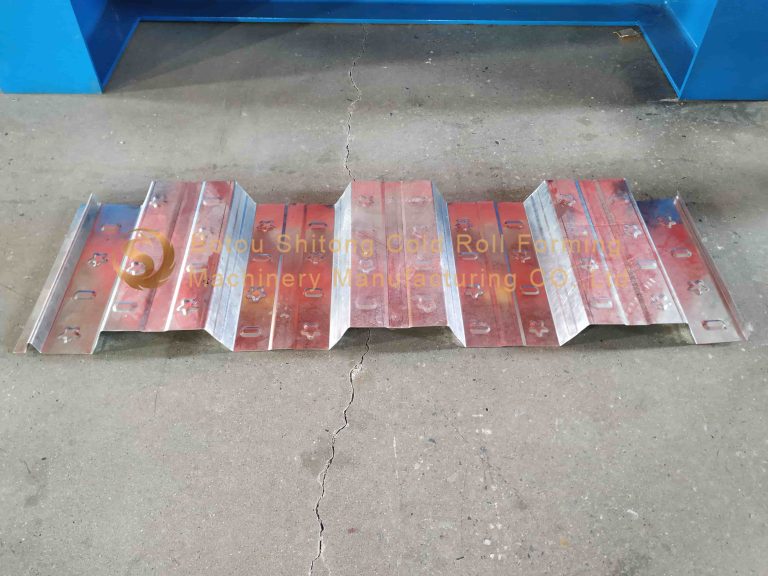

The Panels made by our Roll Forming Machine have beautiful appearance and bright color.
They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas.

Working Flow Uncoiling — Sheet guiding — Roll forming — Measure length — Pressure pattern — Cutting — Panels to product stand

MACHINE PARAMETER

NO.	Item	Specification
Material	Raw material	Galvanized steel or PPGI
Material	Thickness	0.8-1.2 mm
Machine	Roller station	15 or depend on customer’ drawing
	Shaft diameter	85mm
	Solid shaft material	High grade 45# steel with Cr12 mov coated, quenching & tempering & treatment
	Roller material hardness 30-40 HRC	Cr12
	Machine size	About 111.61.6m
	Machine weight	About 8 tons
	Machine color	As customer need
	Working speed	20-25 m/min
Cutter	Hardness	50-65 HRC
	Cutting tolerance	± 1mm
	Material	Cr12mov
	Operate	Hydraulic cutting
Power	Driving way	Chain 1 inch
	Main motor	11 KW
	Pump motor for cutter	4 KW
	Voltage	380V/50HZ, 3P or Customized as customer’ request
Control system	PLC brand	Delta made in Taiwan
	Screen	Touchable screen
	Language	Chinese and English or add customer need language
Decoiler	Operation	Automatic
	Weight capacity	12 Tons

Receive table	Operation	Manual
	Length	6 m

Packing and transportation

All our machines will be packaged in dust and water proof, and they can be reinforced after loading to fully meet export packaging standards.

Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all original documents to you by Express For Free. If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.
