Ridge Cap Press Roll Forming Machine Excellent Quality

Categories: Ridge cap roll forming machine

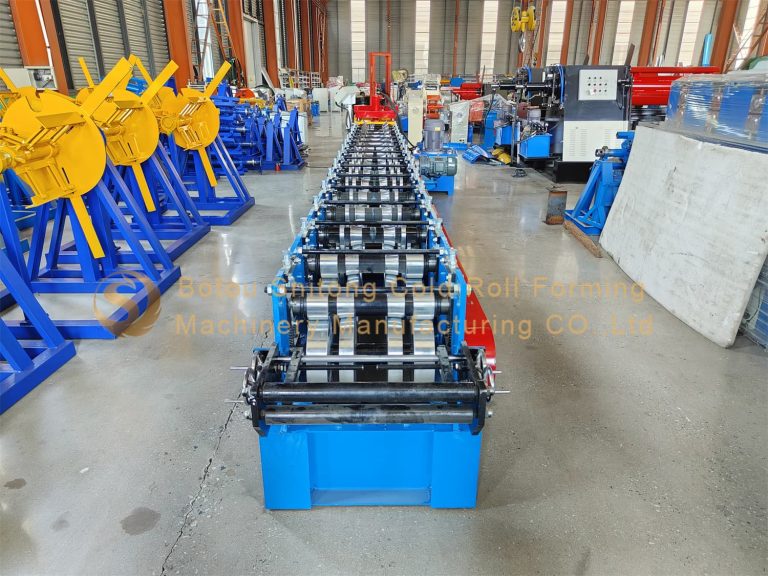

Metal roof ridge cap roll forming machine

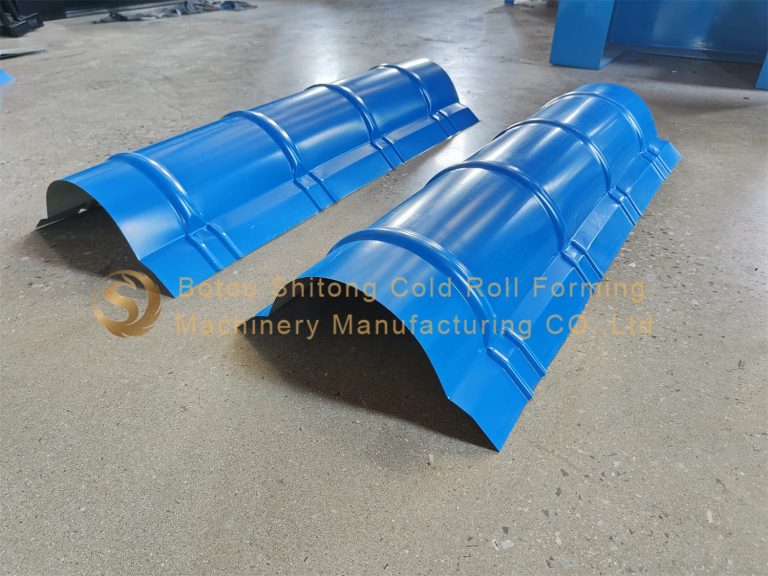

The machine is mainly used to produce Ridge Cap Profiles, which is used to construct the buildings together with the step-tileroof panels.The designing of machine is reasonable; the technology is advanced; high performance stability; the productivity ishigh and can make economical benefit.Produced ridge cap profiles have beautiful design and long service life. The production lineincludes Un-coiler, feeding section, roll forming machine with protect guard, hydraulic pressing or hydraulic post cut device, PLCcontrol system and so on.

Chat Now

Product Details

Ridge Cap Press Roll Forming Machine Excellent Quality

The Panels made by our Roll Forming Machine have beautiful appearance and bright color.
They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas.

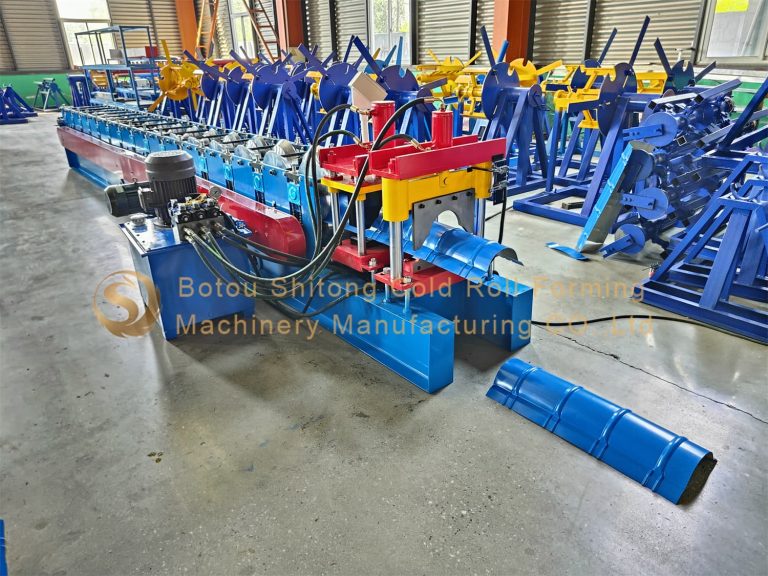

Working Flow Uncoiling — Sheet guiding — Roll forming — Measure length — Pressure pattern — Cutting — Panels to product stand

MACHINE PARAMETER

NO.	Item	Specification
Material	Raw material	Galvanized steel or PPGI
Material	Thickness	0.3-0.8 mm

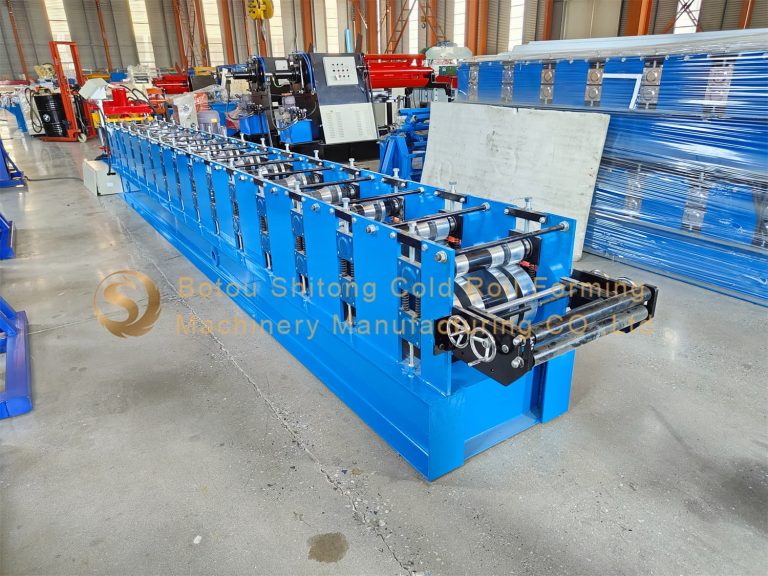

Machine	Roller station	15 or depend on customer’ drawing
	Shaft diameter	85mm
	Solid shaft material	High grade 45# steel with Cr12 mov coated, quenching & tempering & treatment
	Roller material hardness 30-40 HRC	Cr12
	Machine size	About 7.01.61.4m
	Machine weight	About 8 tons
	Machine color	As customer need
	Working speed	20-25 m/min
Cutter	Hardness	50-65 HRC
	Cutting tolerance	± 1mm
	Material	Cr12mov

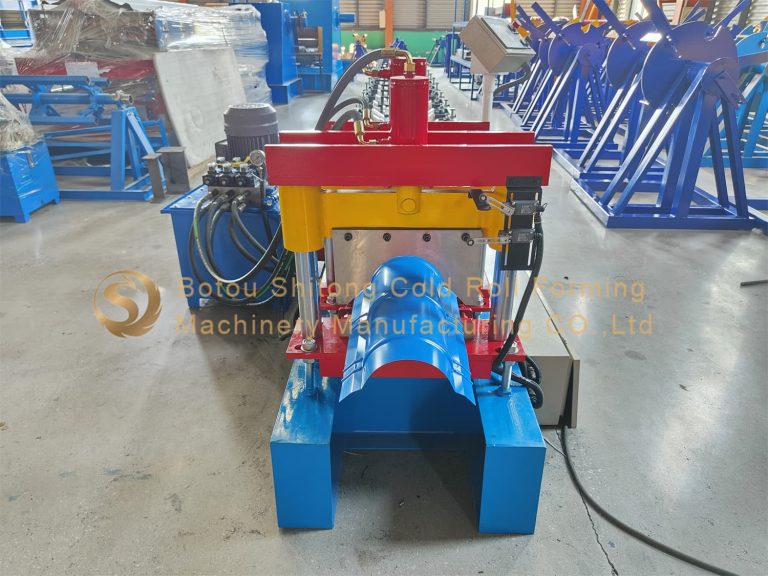

	Operate	Hydraulic cutting
Power	Driving way	Chain 1 inch
	Main motor	4 KW
	Pump motor for cutter	3 KW
	Voltage	380V/50HZ, 3P or Customized as customer’ request
Control system	PLC brand	Delta made in Taiwan
	Screen	Touchable screen
	Language	Chinese and English or add customer need language
Decoiler	Operation	Automatic
	Weight capacity	3Tons

Receive table	Operation	Manual
	Length	3 m

Packing and transportation

All our machines will be packaged in dust and water proof, and they can be reinforced after loading to fully meet export packaging standards.

Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all original documents to you by Express For Free. If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.
