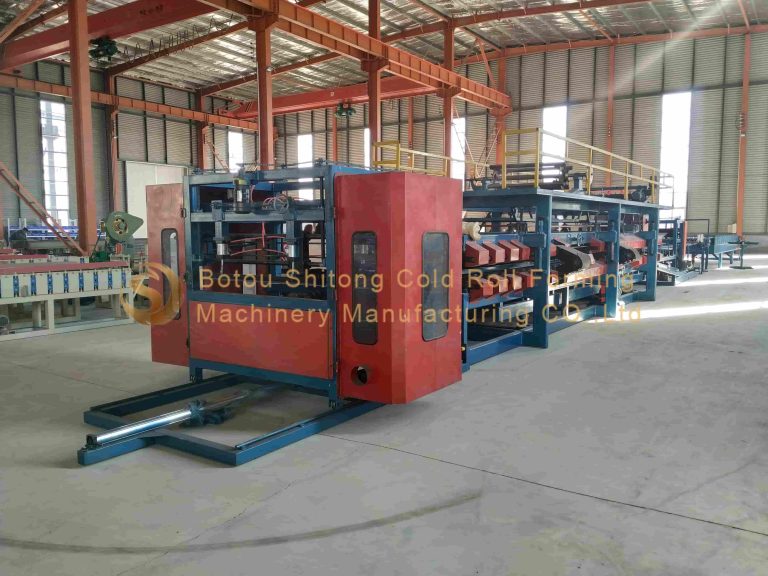

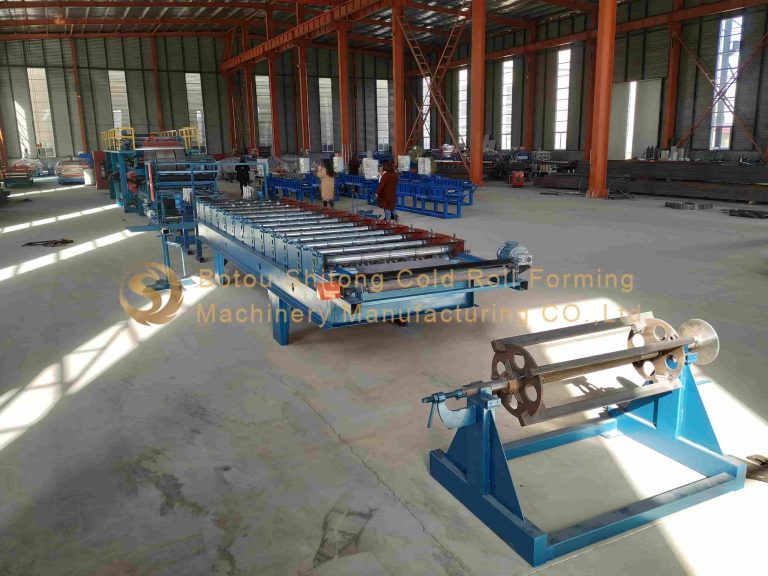

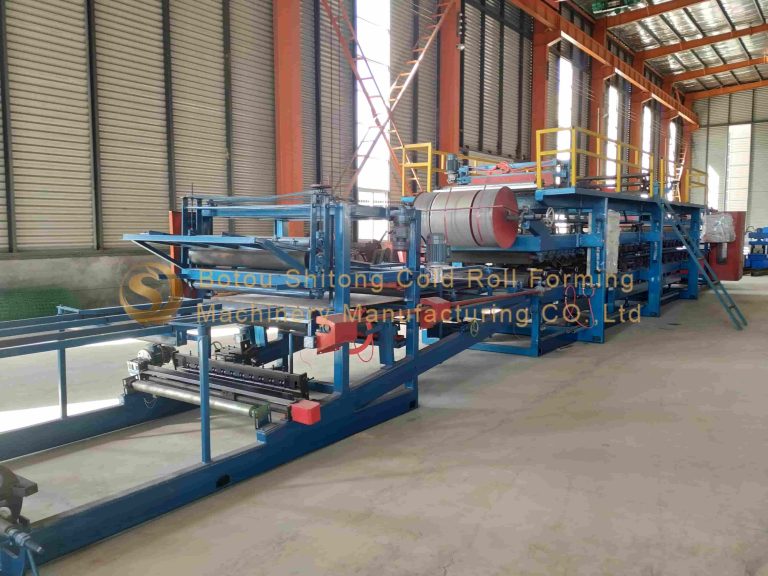

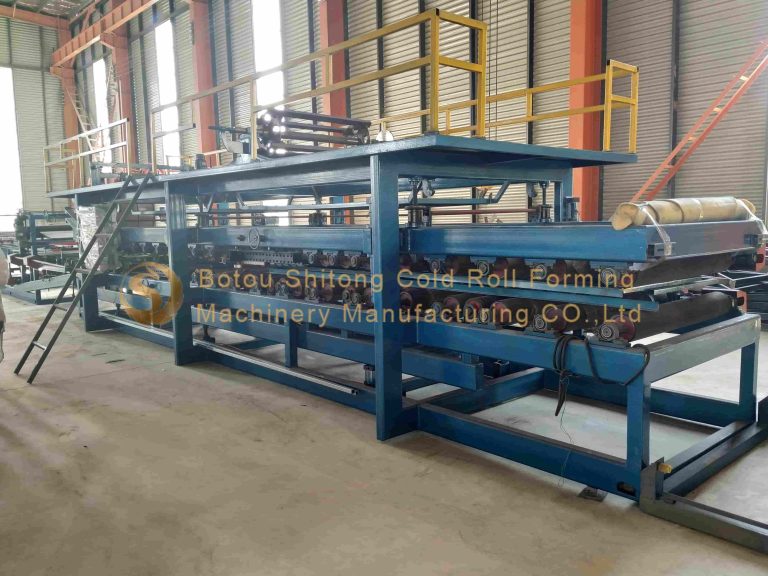

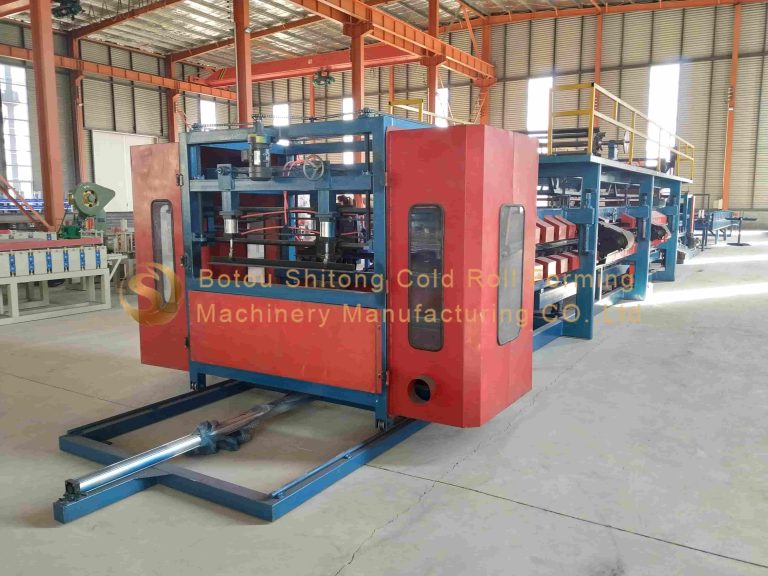

Rock Wool Foam EPS Composite Plate Roof Wall Panel Sandwich Panel Roll Forming Making Machinery

Categories: Sandwich panel production line

The panel is composed of a metal substrate, a color – coated layer, and an embossed layer.The color – coated layer provides rich colors and good corrosion resistance, while the embossed layer gives the panel a three -dimensional texture.

Exquisite carved patterns can greatly enhance the aesthetic appearance of the building, while effectively reducing building energy consumption. It can be used for decorating interior walls and ceilings, adding a sense of hierarchy and artistry to the space. Easy to install, able to quickly build the structure of activity board room, suitable for temporary use in outdoor operations and other places.

Chat Now

Product Details

Product Specification

No.	Item	Specification
Material	Raw material	Galvanized steel or PPGI
Material	Thickness	0.3-0.8 mm
Machine	55Roller station	16 roller stations or depend on customer’ drawing
	Shaft diameter	80 mm
	Solid shaft material	High grade 45# steel with Cr12 mov coated, quenching & tempering & treatment
	Roller material hardness 30-40 HRC	Cr12
	Machine dimension	About 3500022002400mm
	Machine weight	About 12tons
	Working speed	8-10m/min
Cutter	Hardness	50-65 HRC
	Cutting tolerance	± 1mm
	Material	Cr12
	Operate	Hydraulic cutting
Power	Driving way	Chain 1.2 inch
	Main motor	35 KW
	Pump motor for cutter	11 KW
	Voltage	380V/50HZ, 3P or Customized as customer’ request
Control system	PLC brand	Delta made in Taiwan
	Screen	Touchable screen
	Language	Chinese and English or add customer need language
Decoiler	Operation	automatic
	Weight capacity	5 Tons
	Price	Free as gift

Packing and transportation

All our machines will be packaged in dust and water proof, and they can be reinforced after loading to fully meet export packaging standards.

Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all original documents to you by Express For Free. If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.
