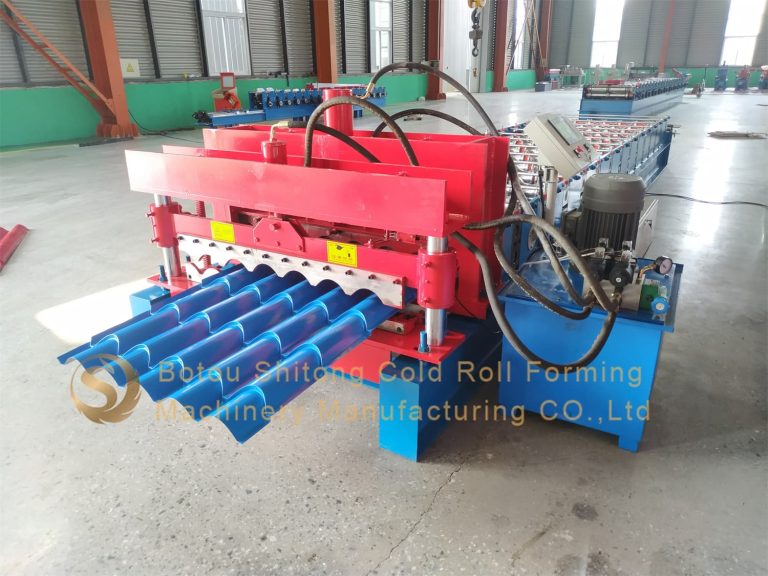

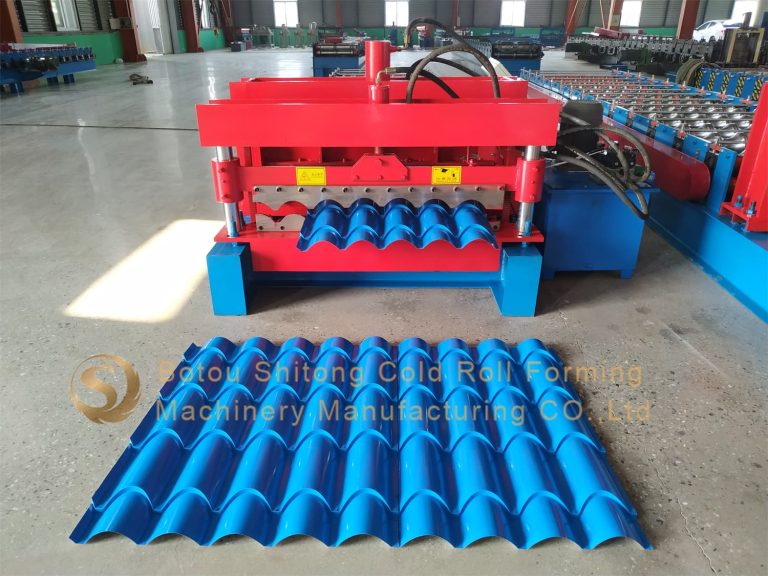

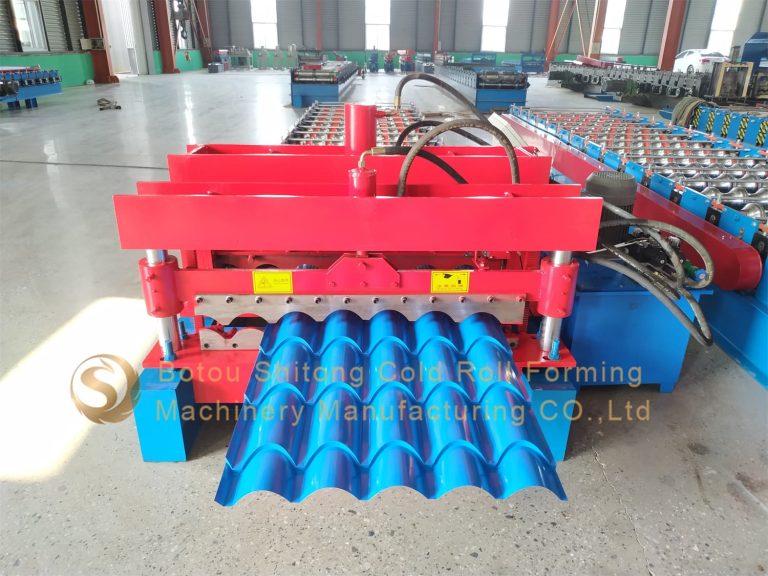

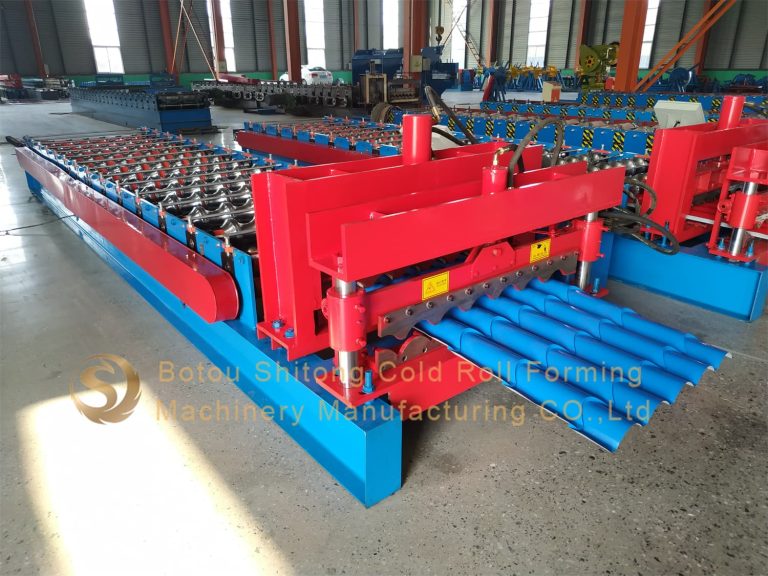

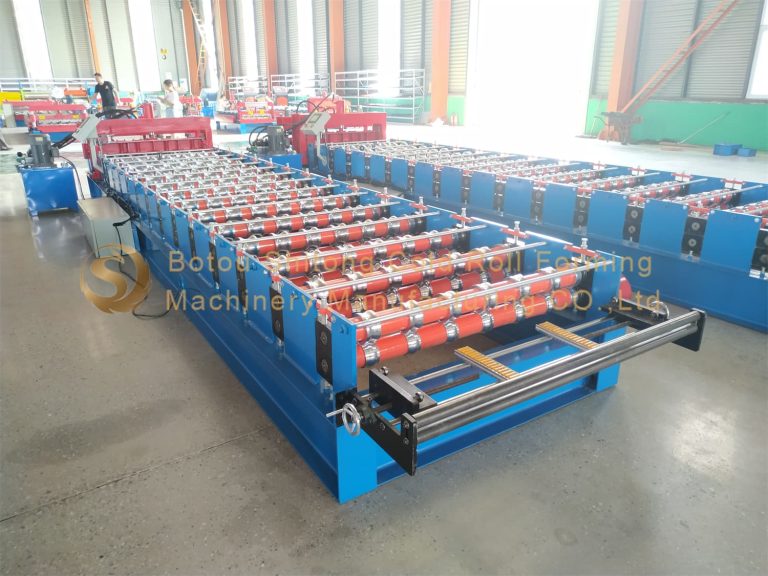

Steel Profile Glazed Tile Roofing Making Machine Metal Roof Panel Roll Forming Machine for Sale

Categories: Glazed tile roll forming machine

Glazed Steel Tile Making Machinery for Colored Glazed Steel Roofing Sheet is used to make the color glazed tiles in batch by the Steel Tile Making Machinery. the finished product of Glazed Steel Tile Making Machinery For Colored Glazed Steel Roofing Sheet is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste. This machine working speed is around 4-5 meter per minutes.

Chat Now

Product Details

Steel Profile Glazed Tile Roofing Making Machine Metal Roof Panel Roll Forming Machine for Salee

The Panels made by our Roll Forming Machine have beautiful appearance and bright color.
They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas.

Working Flow Uncoiling — Sheet guiding — Roll forming — Measure length — Pressure pattern — Cutting — Panels to product stand

MACHINE PARAMETER

NO.	Item	Specification
Material	Raw material	PPGI / Aluminium sheet / galvanized sheet / various sheet plates
Material	Thickness	0.3mm—0.8mm or depend on customer’ drawing
Decoiler	Operation	Manual or Hydraulic
Decoiler	Weight capacity	5T 7T 10T
Machine	Machine body frame	350H steel
	Shaft diameter	60mm, 70mm, 80mm
	Transfe rmethod	Sprocket & Chain
	Roller material	Cr12
	Roller station	12-18 or depend on customer’ drawing
	Working speed	3-5 m/min
Cutter	Hardness	50-65 HRC
	Cutting tolerance	± 1mm
	Material	Cr12
	Operate	Hydraulic cutting
Power	Main motor	5.5 KW
	Pump motor for cutter	7.5 KW
	Voltage	380V/50HZ, 3P or Customized as customer’ request
Control system	PLC brand	Delta/Siemens
	Screen	7 inches
	Language	Chinese and English or add customer need language

Packing and transportation

All our machines will be packaged in dust and water proof, and they can be reinforced after loading to fully meet export packaging standards.

Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all original documents to you by Express For Free. If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.
